Hardware Resources

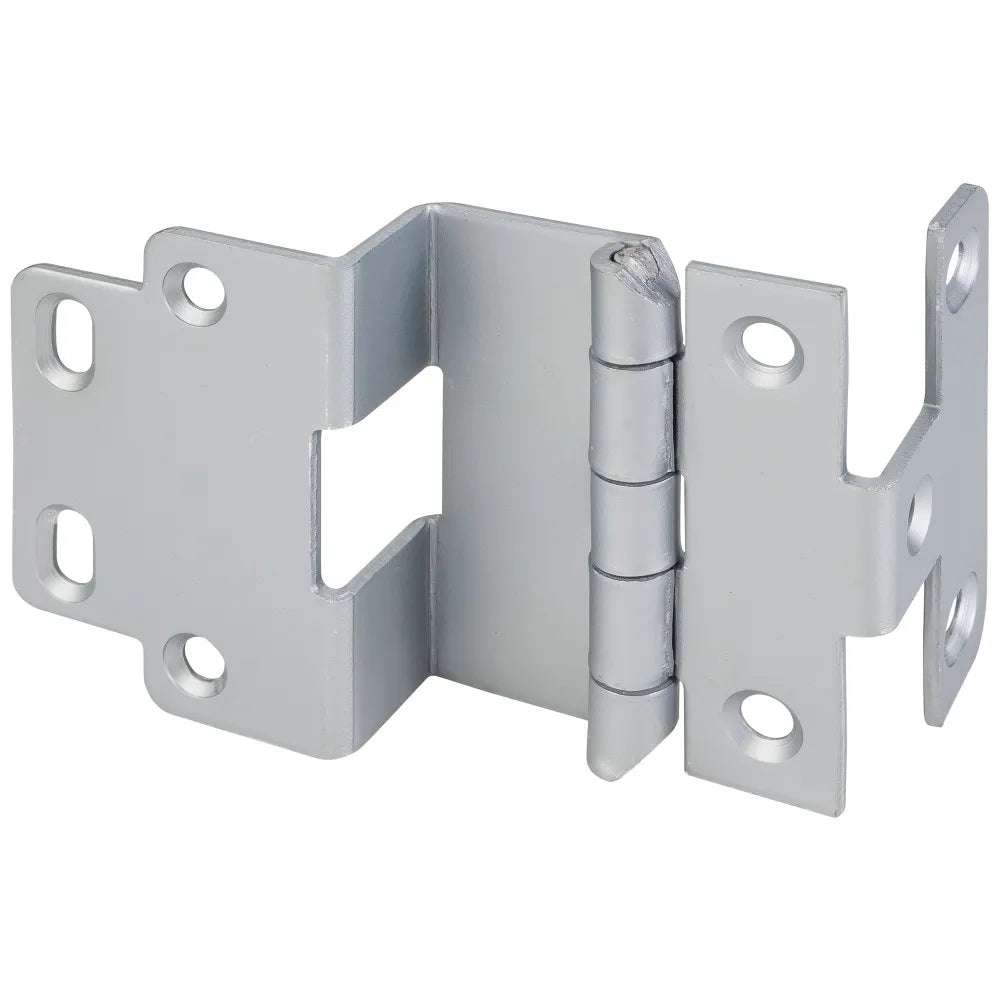

Institutional 5-Knuckle Non-Mortise Cabinet Hinge - Dull Nickel

Institutional 5-Knuckle Non-Mortise Cabinet Hinge - Dull Nickel

Regular price $5.22
Regular price Sale price $0.00 USD
Sale Sold out
    • Conforms to ANSI/BHMA Grade 1 Requirements
    • Hospital tips, 2-3/4” overall height
    • Drilled knuckle inner diameter

Details

Item Number HR0076
Number of Knuckles 5
De-mountable No
Hinge Type Institutional Hinge
Recommended Screws Stainless steel #8 x 3/4” flathead screw
Pivot Type Single
ADA Friendly No
Packaging Type Small Package
Overlay 3/4"
Sold By Each
Brand Hardware Resources
Finish Dull Nickel
Mount Type Screw
Attachment Type Screw-in
Material Steel
Certification ANSI/BHMA Grade 1
Installation Screw
Warranty Period Limited Lifetime
UPC Code 840002530880

More Information

FEATURES
Slotted screw holes for vertical and horizontal adjustment
Hospital tips, 2-3/4" overall height
32 mm system hole pattern with 37 mm setback
NOTES
Full Carton Count 100
Inner Carton Count 20

Resources


SPECIFICATIONS:
